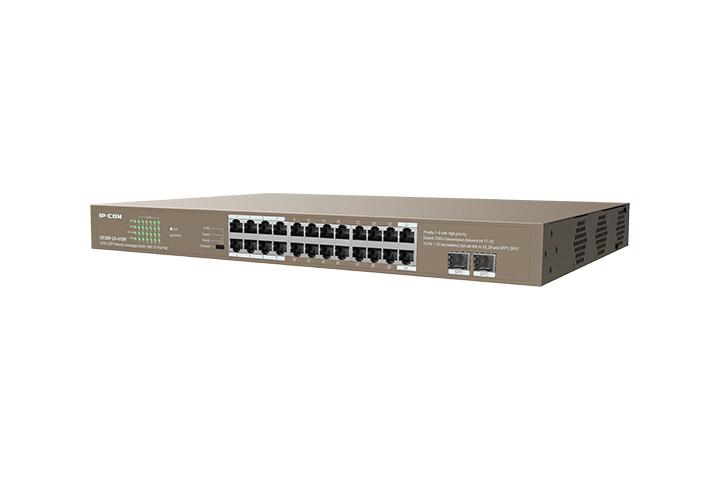

G1126P-24-410W   IP-COM 24GE+2SFP Ethernet Unmanaged Switch With24-Port PoE   Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards. 24 * 100/1000 Mbps Base-T RJ45 ports for data transmission and power supply. 2 * 1000 Mbps Base-X SFP slots. 8K MAC address table and MAC address auto-learning. IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control. 48Gbps backplane bandwidth. Maximum power consumption of a single port: 30W. Maximum power consumption of the switch: 410W. 4 modes: standard, priority, extend and VLAN. Rack mounting.   Caratteristiche tecniche Model G1126P-24-410W Interfaces 24 * 100/1000 Mbps Base-T RJ45 ports (Data/Power) 2* 1000 Mbps Base-X SFP port Lightning protection ≥6KV Forwarding mode Store-and-forward Switching capability 48 Gbps Packet forwarding rate 35.7 Mpps Buffer 2M MAC address table 8K PoE supply Ports 1-24 support standard IEEE802.3af/at 30W output per PoE port 370W output of the total PoE Power Power consumption 410W output the whole device Input voltage AC: 100-240V~50/60Hz Dimensions 440*284*44mm Four Modes Standard: Default mode of the switch. In this mode, it works as an unmanaged switch;all ports can communicate with each other separately. Priority: In this mode, port 23,24,SFP1 and SFP2 serve as uplink ports, ports 1 ‒ 8 serve as high priority port. All ports can communicate with each other separately. Extend: In this mode, data rate of ports 17 - 22 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other. VLAN: In this mode, ports 1 - 22 of the switch can communicate with port 23,24, SFP1, SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast. Operating environment Operating Temperature: 0℃~45℃ (32℉~113℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Certificates FCCã€ÂCEã€ÂRoHS
