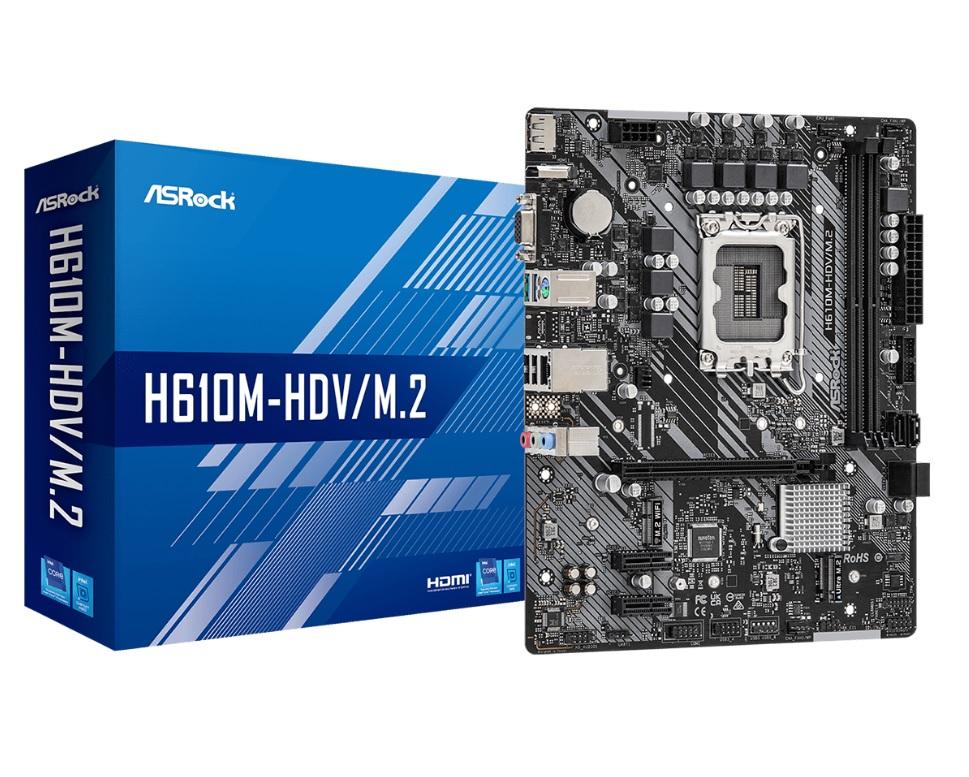

H610M-HDV/M.2 Supports 12th Gen Intel® Core™ Processors (LGA1700) 6 Phase Power Design Supports DDR4 3200MHz 1 PCIe 4.0 x16, 2 PCIe 3.0 x1 1 M.2 Key-E for WiFi Graphics Output Options: HDMI, DisplayPort, D-Sub Realtek ALC887/897 7.1 CH HD Audio Codec 4 SATA3 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 4 USB 3.2 Gen1 (2 Rear, 2 Front) 5 USB 2.0 (2 Rear, 3 Front) Intel® Gigabit LAN Unique Feature: ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU: - Supports 12th Gen Intel® Core™ Processors (LGA1700) - Digi Power design - 6 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology Chipset: - Intel® H610 Memory: - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 2.0 BIOS: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment Graphics: - Intel® Xe Graphics Architecture (Gen 12) - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports Audio: - 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) - Supports Surge Protection LAN: - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE Slots: - 1 x PCIe Gen4x16 Slot* - 2 x PCIe Gen3x1 Slots - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Storage: - 4 x SATA3 6.0 Gb/s Connectors* - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes** Connector: - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Rear Panel I/O: - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI: Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash Factor: - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm - Solid Capacitor design OS: - Microsoft® Windows® 10 64-bit / 11 64-bit
